* DND-200D/200A : Microwave Barrier Radar Detector(Outdoor)
* Features
· 감지범위 : Max. 200m(지면기준)/80~100m(담장기준)
· 작동온도 :-40°C∼+65°C.
· 입력전원: 9∼30 Vdc.
· 침입자가 걷고, 뛰거나 기는 것을 감지함
· 기둥이나 울타리, 벽에 신속하고 간편한 설치
· 유지보수가 필요 없음
· 높은 RFI/EMI 내성(High RFI/EMIImmunity)
· RS-485 통신으로 원격 조절 가능
· 설치높이 : 지면을 기준으로 80~90cm 높이에 설치. (담장 위 설치 시에는
20~30cm 높이에 설치하되 지면에서 높이는2.5~3m 이내로 설치)
· KC 적합인증
· Detection range : Max. 200m (Ground install.)Max. 80 ~ 100m (Fence install.)
· Operating temperature : -40 ° C to + 65 ° C.· Input power: 9 ~ 30 Vdc.· An intruder senses walking, running or crawling.· Quick and easy installation on pillars, fences and walls.· No maintenance required. High RFI / EMI Immunity.· Remote control via RS-485 communication.· Installation Height: 80 ~ 90cm height based on the ground.(When installing on a fence, install it at 20 ~ 30cm height but within 2.5~3m height from the ground)
* Specification
Microwave Frequency | Weather Proofing |
Scope (Length of Protection zone) | Max. 200m |
Lobe Witdh | 1.5m(Max) |
Lobe Height | 1.2m(Max) |
Range of Power Supply Voltage | 9 ~ 30 Vdc |
Current Consumption | 35mA |
Relay Contacts Values | N.C 28 Vdc, Maximum current 0.1 A |
Alarm Period | 3 Sec (Max.) |
Tamper Switch | N.C 28 Vdc Maximum current 0.1 A - open when cover is removed |
Detection Speed (Target Velocity) | 0.1 ~ 10 m/sec |
Remote testing | Built-in self-test generator simulates actual intrusion signals |
Flatness of Ground | Approx. 0.3 m |
Maximum Height of Grass on the ground | 0.3 m |
Maximum Height of Snow on the ground | 0.5 m |
Alarm Output - Switching over of relay Contacts for the time | Minimum 3 Sec |
Dimensions of Unit (trans./rec.) W/O braket | 211x138x105mm |
Weight (T,Rand Accessories) | 1.2Kg |
Operating Temperature Range | -40°C ~ +65°C |
Interface | RS-485 |
Weather Proofing | ·All openings with gasket and sealed ·Conformal coated circuit board |

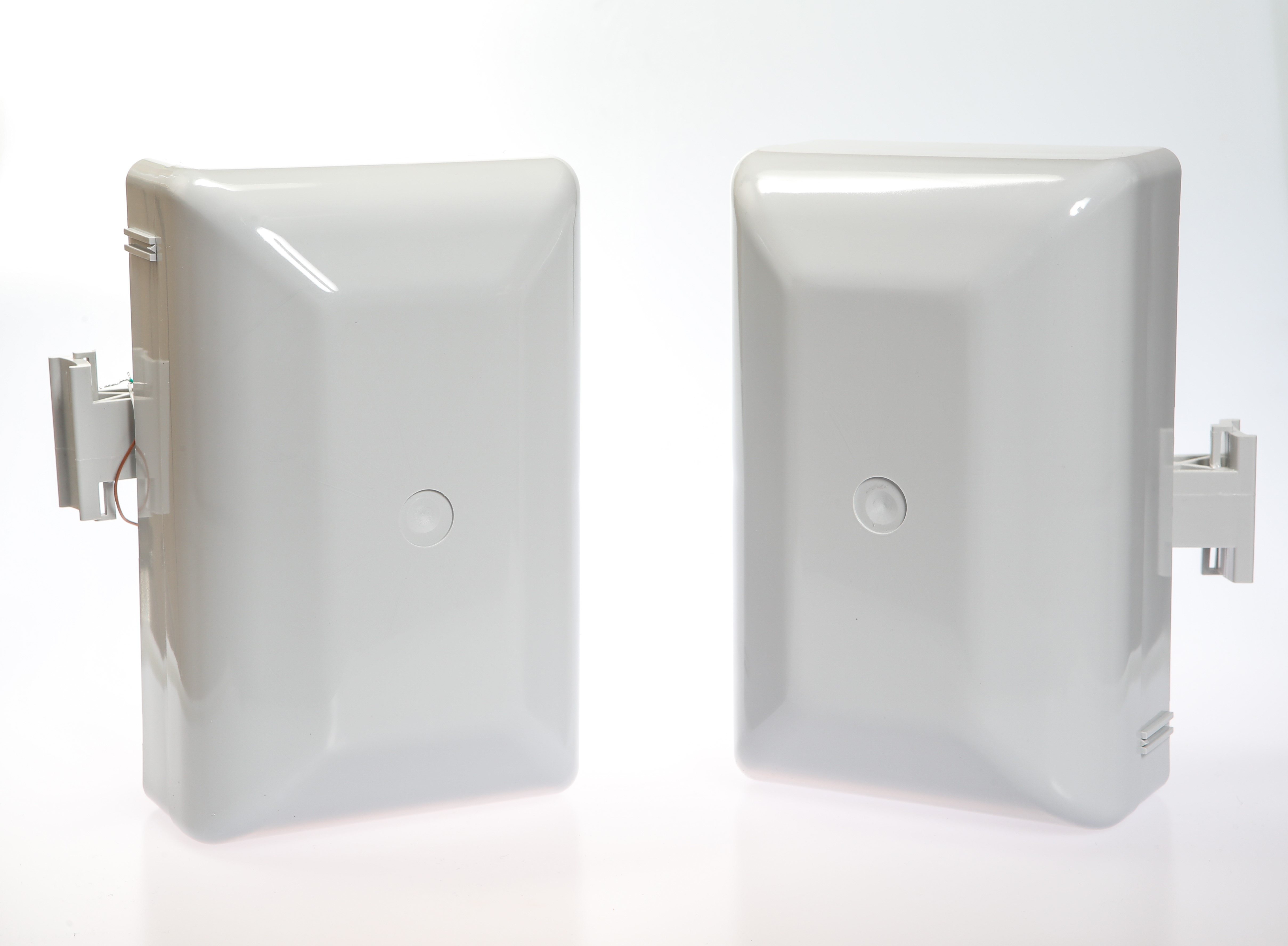

DND-200D(Security Detector)
