* Model No

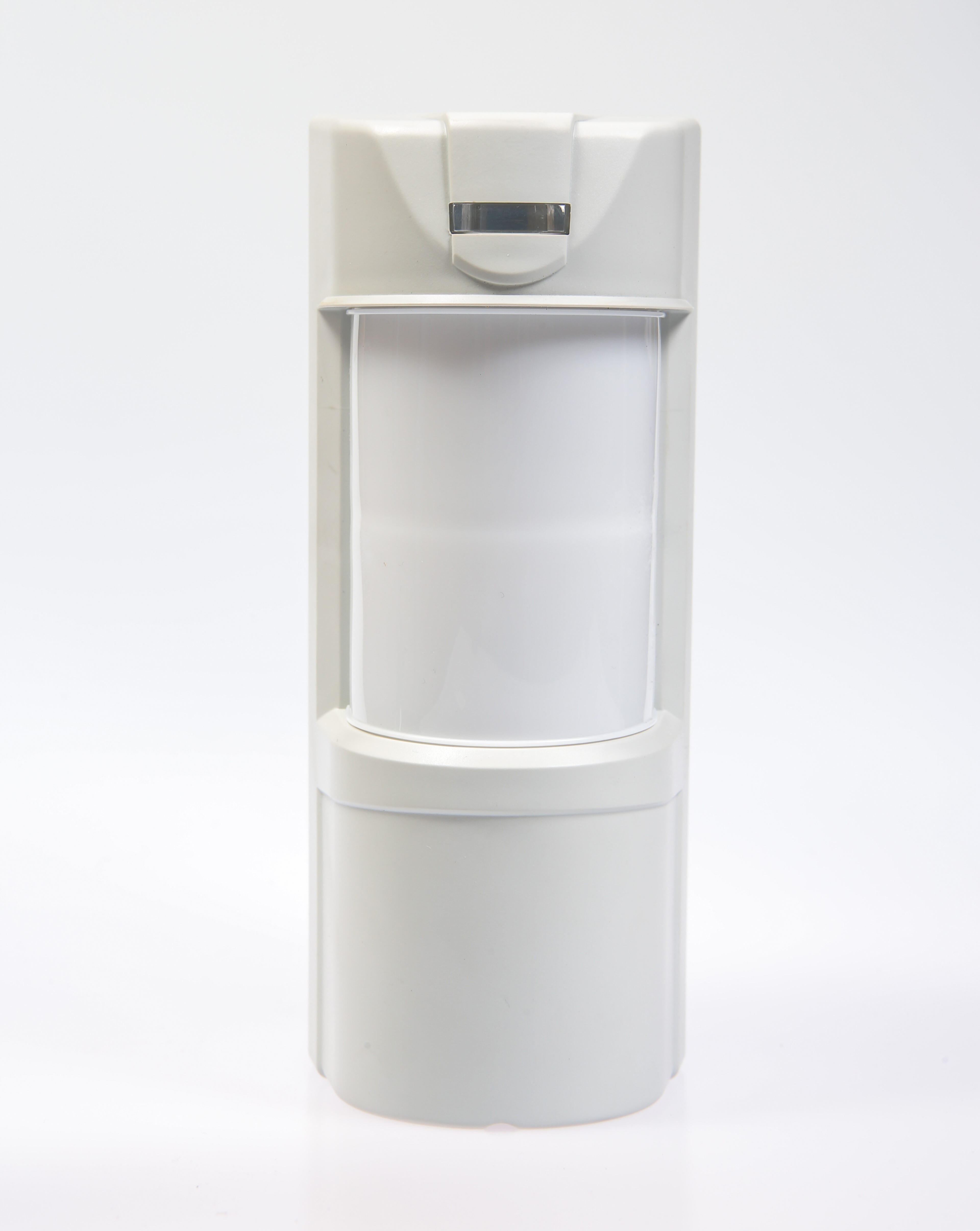

DND-3000 : Double Quad PIR & Microwave Outdoor Detector
* Features
· 도플러 원리를 응용한 Microwave K-Band 적용 · 감지범위(각도)는 90°이며, 180° 이내에서 조절 가능 · 강력한 폴리카보네이트 하우징과 자동 온도 보상 · 감도 조절 사용자가 선택 가능 · 뛰어난 RFI 면역(RFI immunity) · 태양광 및 백색광에 대한 뛰어난 필터링 · KC 적합인증
· PIR & Microwave Complex· Detection coverage 360 °· Strong polycarbonate housing and automatic temperature compensation· User selectable sensitivity control· Superior RFI immunity (RFI immunity)· Superior filtering for sunlight and white light - Dust / Waterproof: IP65
* Specification
Specification | Type | Specification | Type |
Voltage | 9.6~ 16Vdc | Detection Distance | 12M |
Current (MAX) | 24mA (+/- 5%) | Tamper Switch | Two Switches |
Current (Stand by) | 21mA(+/- 5%) | Operating Temp | -35°C ~ +55°C |
Microwave Power | 13dBm EIRP | Led Indicator | Led is ON during ALARM |
Frequency | 24.000 ~ 24.250GHz | RF immunity | 10V/m plus 80% AM from 80MHz to 2GHz |
Communication Mode | Ethernet | Mounting Style | Pole |
Warm up Period | 120 sec(+/- 5sec) | Mounting Height | 0.8M ~1.5M |
Alarm Period | 2 sec(+/- 0.5sec) | Weight | 2Kg |
Alarm Output | Form C (NC,NO,COMMON) | Dimensions (H*L*W) | 200 x 240 x 240 mm |
*Detection Range
·The DND-3000 uses PIR and microwave Detect up to 12m by combining detection patterns (1.0 to 1.2 meters above the surface of the earth)
·The DND-3000 has an internal moving housing (Two PIR and microwave devices Can be adjusted
to the left and right, It is used in the range of 360
